Sanitary Thermowell Elbows and Tees for High Purity Temperature Measurement
Sanitary Thermowell Elbows and Tees
for optimal performance
Fluid Line Technology manufactures sanitary thermowell elbows and tees in Simi Valley, California for biotech and pharmaceutical piping since 1989. Our thermowells integrate temperature measurement into high purity lines without compromising cleanability, using a reduced inlet design for minimal pressure drop and gravity drainability with proper line slope. FNPT and TC instrument ports accept sanitary RTDs and thermocouples, and bodies are available in 316L stainless steel, C-22, C-276, and AL6XN with custom probe lengths. Built to ASME BPE designations, each thermowell ships traceable. Call (818) 998-8848 or email sales@fluidlinetech.com to request a quote or catalog.
A thermowell protects a temperature sensor while keeping it out of the product path, which matters in sanitary systems where cleanability cannot be compromised. Fluid Line Technology offers elbow and tee configurations engineered for drainability and minimal pressure drop.
Sanitary Thermowell Elbows

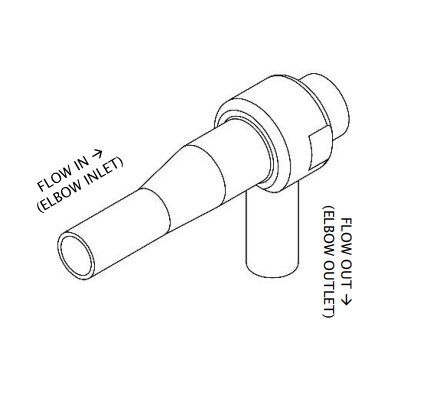

0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 0 Degree
Features:
- Reduced inlet design for minimal pressure drop and excellent immersion.
- Configured for gravity drainability with proper line slope.
- FNPT and TC instrument port options for sanitary RTDs and thermocouples.
Compliance:
- ASME BPE DT-4-1, MJ-8.5-1, SF-2.2-1, SF-2.2-2 (EP option), SF-2.6-1.
Materials:
- Available in 316LSS, C-22, C-276, and AL6XN.
Customization:
- Special probe lengths and TC connections available on request.

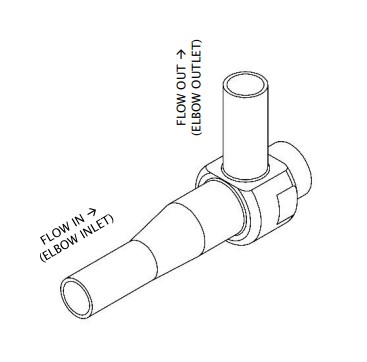

0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 180 Degree
Features:
- Similar benefits to the 0 Degree version, ensuring minimal pressure drop.
- Configured for gravity drainability with sufficient line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same standards and material options as the 0 Degree version.

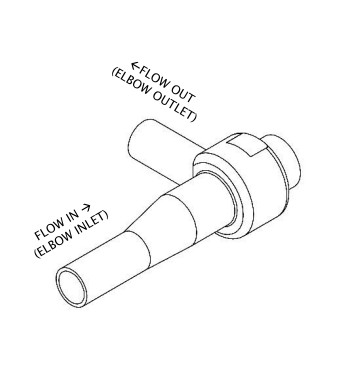

0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 270 Degree
Features:
- Ensures minimal pressure drop and excellent immersion.
- Configured for proper installation and gravity drainability.
- FNPT and TC instrument port options.
Compliance and Materials:
- Meets the same standards as other Thermowell Elbows in our catalog.

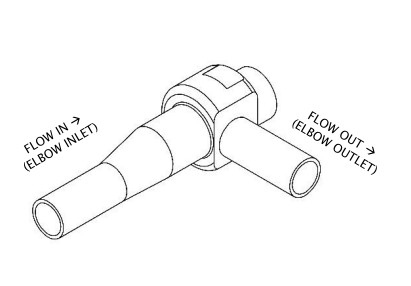

0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 90 Degree
Features:
- Reduced inlet design for minimal pressure drop.
- Configured for gravity drainability with proper line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.

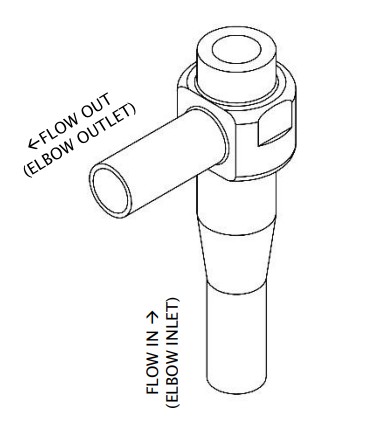

0.5” & 0.75” Sanitary Thermowell Elbow Concentric
Features:
- Reduced inlet design for minimal pressure drop and excellent immersion.
- Configured for gravity drainability with proper line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.
1.0” to 6.0” Sanitary Thermowell Elbow Straight Configuration
Features:
- Straight configuration suitable for various applications.
- Customizable probe lengths, finishes, and connection types.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.

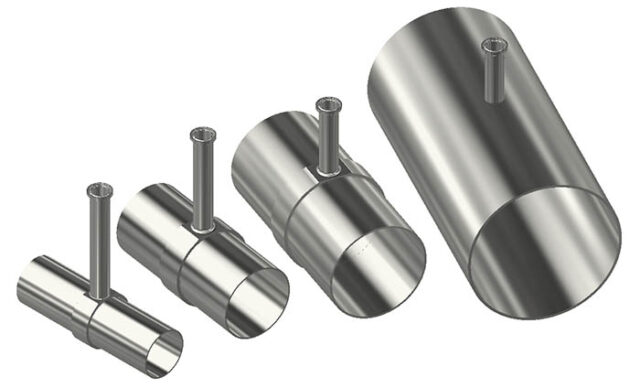

Sanitary Thermowell Tees
Welcome to Fluid Line Technology’s Sanitary Thermowell Catalog, where we offer an extensive range of Sanitary Thermowell Elbows and Tees designed for optimal performance in various industrial applications. Our catalog features detailed specifications to help you choose the right sanitary thermowell for your needs.
Materials:
- Offered with varying probe lengths, finishes, run sizes, and connection types.
Customization:
- Special probe lengths and TC connections available on request.
- Additional features like passivation, electropolish, weld maps, hydrostatic testing, and standard certifications are available upon request.
How do I choose the right sanitary thermowell for my process?
Pricing and How to Order
Pricing depends on configuration, probe length, material, and finish. There is no public price list for this B2B product line. Request a quote, view the thermowell catalog, or contact our team at (818) 998-8848 or sales@fluidlinetech.com.
Where We Ship
Fluid Line Technology ships nationwide across the United States and supports international customers, with recent demand from Ireland, Canada, India, the United Kingdom, Singapore, Taiwan, and Germany. Our facility is at 4590 Ish Dr. #110, Simi Valley, CA 93063. Call (818) 998-8848 or email sales@fluidlinetech.com.
Frequently Asked Questions
What is a sanitary thermowell used for?
What is the difference between a thermowell elbow and a thermowell tee?
What instrument ports do your thermowells support?
Which ASME BPE standards do your thermowells meet?
Can you make custom probe lengths and connections?
