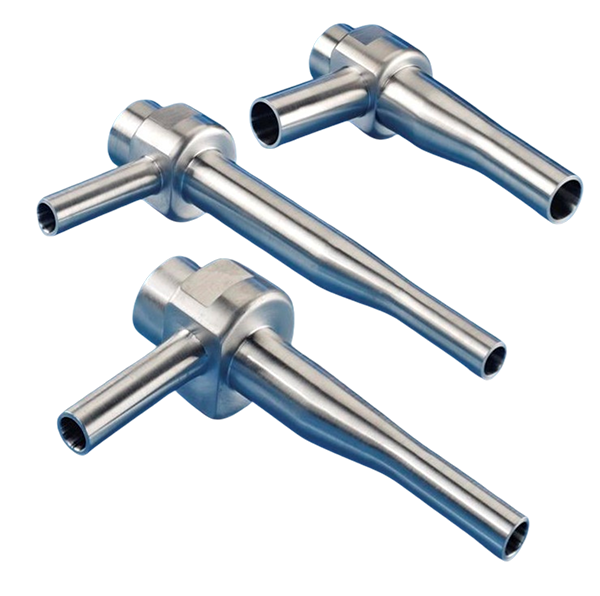

Sanitary Thermowell Elbows and Tees
Sanitary Thermowell Elbows and Tees
Welcome to Fluid Line Technology’s Sanitary Thermowell, where we offer an extensive range of Sanitary Thermowell Elbows and Tees designed for optimal performance in various industrial applications. Our catalog features detailed specifications to help you choose the right thermowell for your needs.
Sanitary Thermowell Elbows
0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 0 Degree
Features:
- Reduced inlet design for minimal pressure drop and excellent immersion.
- Configured for gravity drainability with proper line slope.

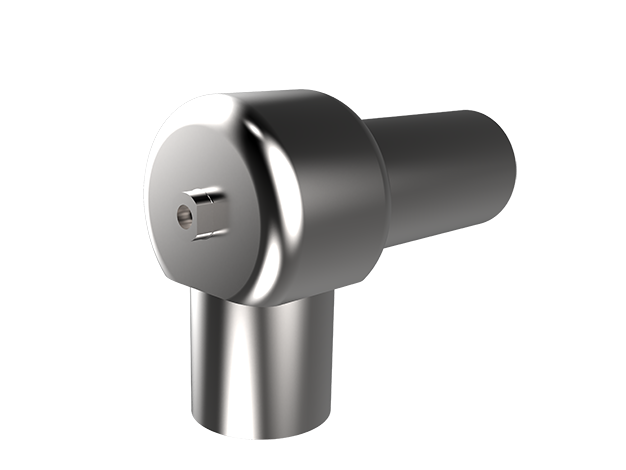

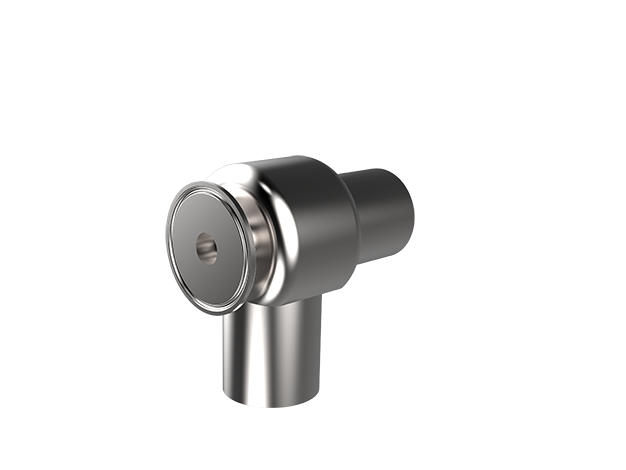

- FNPT and TC instrument port options for sanitary RTDs and thermocouples.
Compliance:
- ASME BPE DT-4-1, MJ-8.5-1, SF-2.2-1, SF-2.2-2 (EP option), SF-2.6-1.
Materials:
- Available in 316LSS, C-22, C-276, and AL6XN.
Customization:
- Special probe lengths and TC connections available on request.
0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 180 Degree
Features:
- Similar benefits to the 0 Degree version, ensuring minimal pressure drop.
- Configured for gravity drainability with sufficient line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same standards and material options as the 0 Degree version.
0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 270 Degree
Features:
- Ensures minimal pressure drop and excellent immersion.
- Configured for proper installation and gravity drainability.
- FNPT and TC instrument port options.
Compliance and Materials:
- Meets the same standards as other Thermowell Elbows in our catalog.
0.5” & 0.75” Sanitary Thermowell Elbow Eccentric – 90 Degree
Features:
- Reduced inlet design for minimal pressure drop.
- Configured for gravity drainability with proper line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.

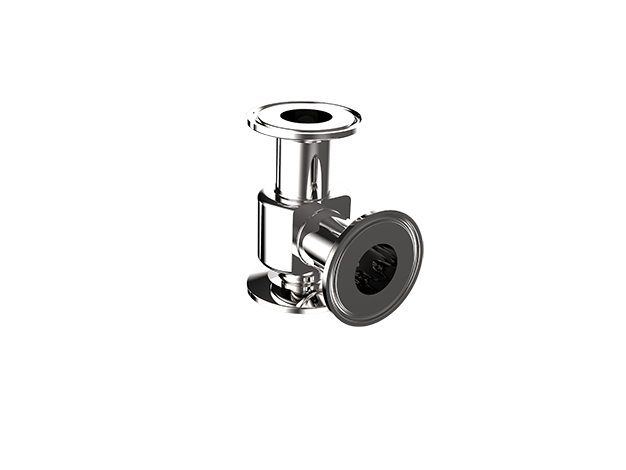

0.5” & 0.75” Sanitary Thermowell Elbow Concentric
Features:
- Reduced inlet design for minimal pressure drop and excellent immersion.
- Configured for gravity drainability with proper line slope.
- FNPT and TC instrument port options.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.
1.0” to 6.0” Sanitary Thermowell Elbow Straight Configuration
Features:
- Straight configuration suitable for various applications.
- Customizable probe lengths, finishes, and connection types.
Compliance and Materials:
- Same as other Thermowell Elbows in the catalog.

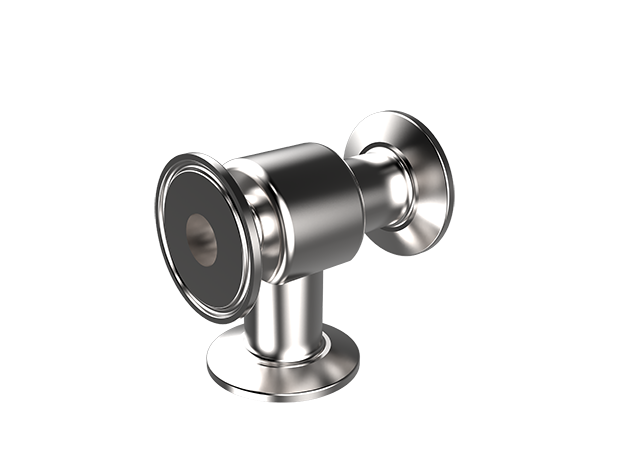

Sanitary Thermowell Tees
Welcome to Fluid Line Technology’s Sanitary Thermowell Catalog, where we offer an extensive range of Sanitary Thermowell Elbows and Tees designed for optimal performance in various industrial applications. Our catalog features detailed specifications to help you choose the right sanitary thermowell for your needs.
Materials:
- Offered with varying probe lengths, finishes, run sizes, and connection types.
Customization:
- Special probe lengths and TC connections available on request.
- Additional features like passivation, electropolish, weld maps, hydrostatic testing, and standard certifications are available upon request.
Contact Us Today!
Note: For more detailed information, part number configurations, and special requests, please contact our sales representative or visit our website.
